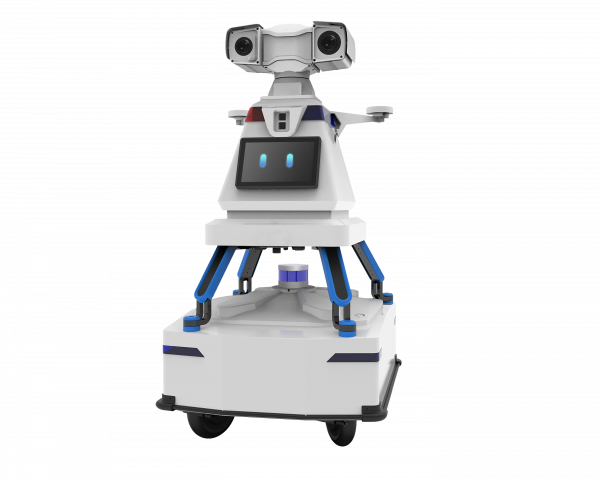

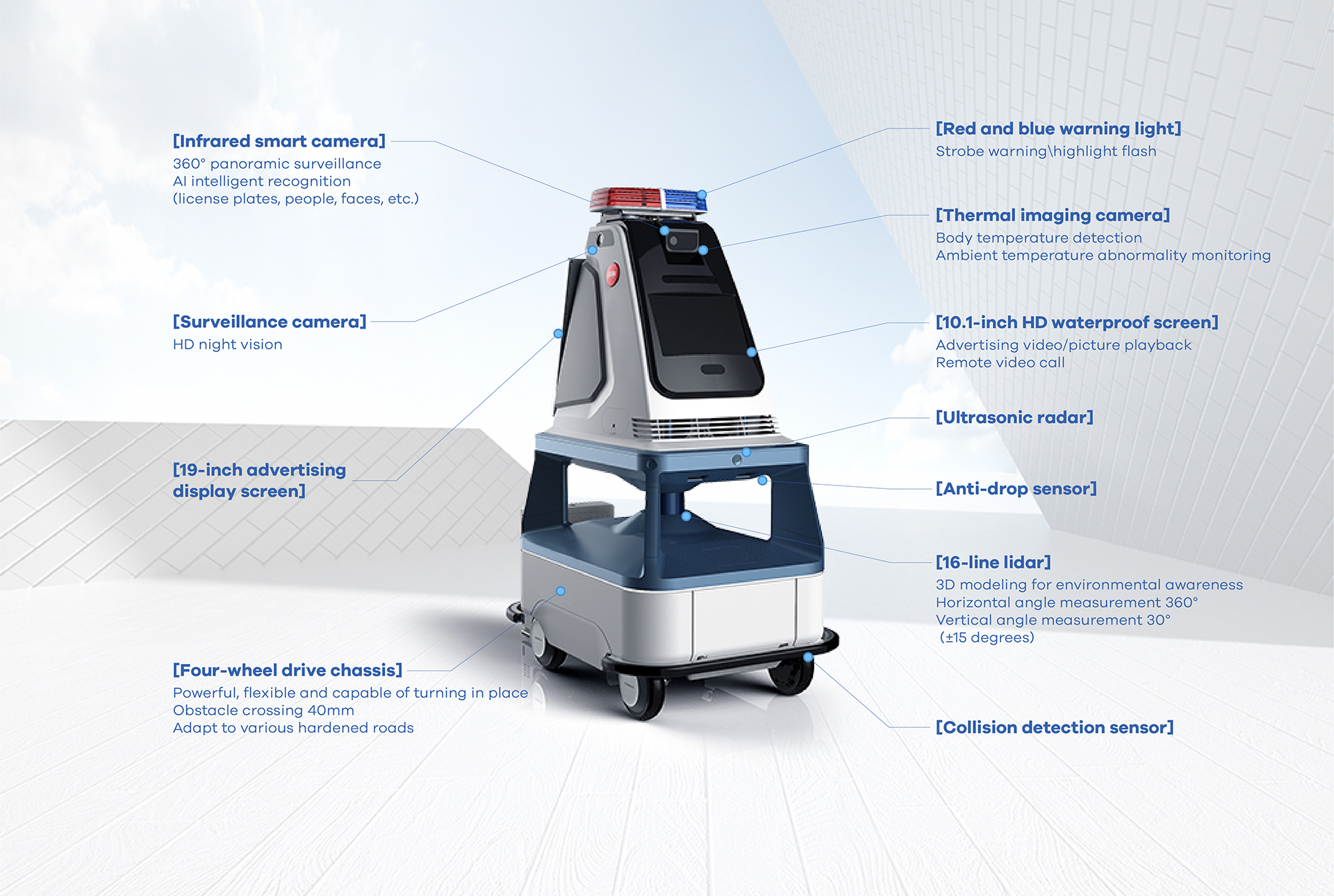

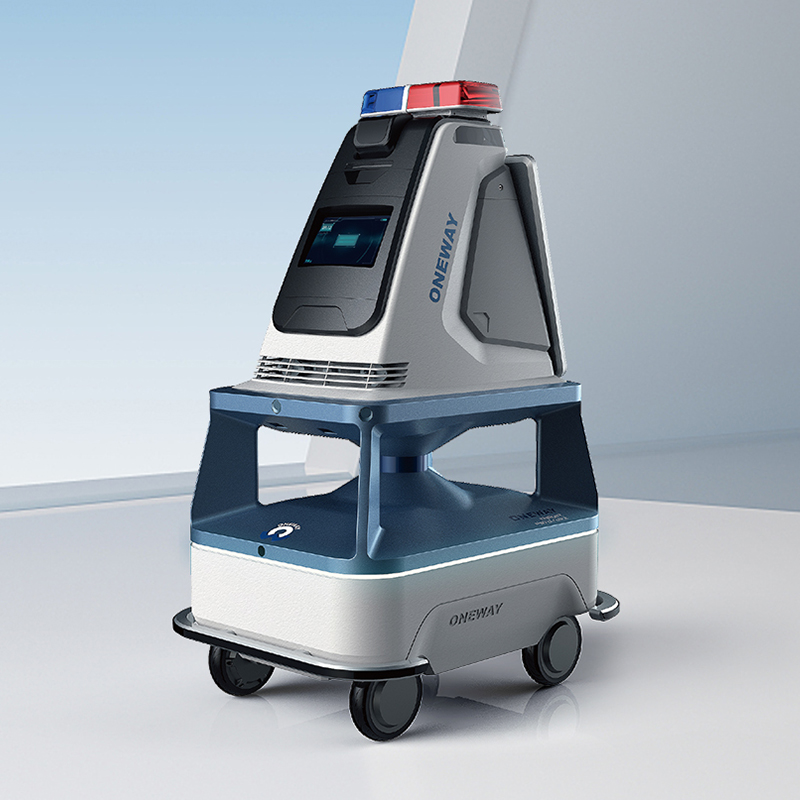

ANBOT-S security patrol robot

ANBOT-S security patrol robot

Mainly applied to indoor and outdoor scenarios such as commercial plazas, shopping centers, commercial centers, scenic spots, exhibition halls, service halls, etc. It has the characteristics of fashionable appearance, long battery life, and supports cross-floors patrol. It supports the networking of public security systems and can collaborate with security guards for night patrols duty. It can also carry out large LED screen advertising and human-computer interaction Q&A during working hours, which can save labor costs, reduce safety hazards, and increase venue advertising revenue.

Product Details

Product advantages:



Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.



Support cross-floor and multi-area patrols: Through the self-developed gate&elevator IoT module, the robot can be linked with elevators and gate to achieve multi-area walking and cover a larger patrol area.



High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.

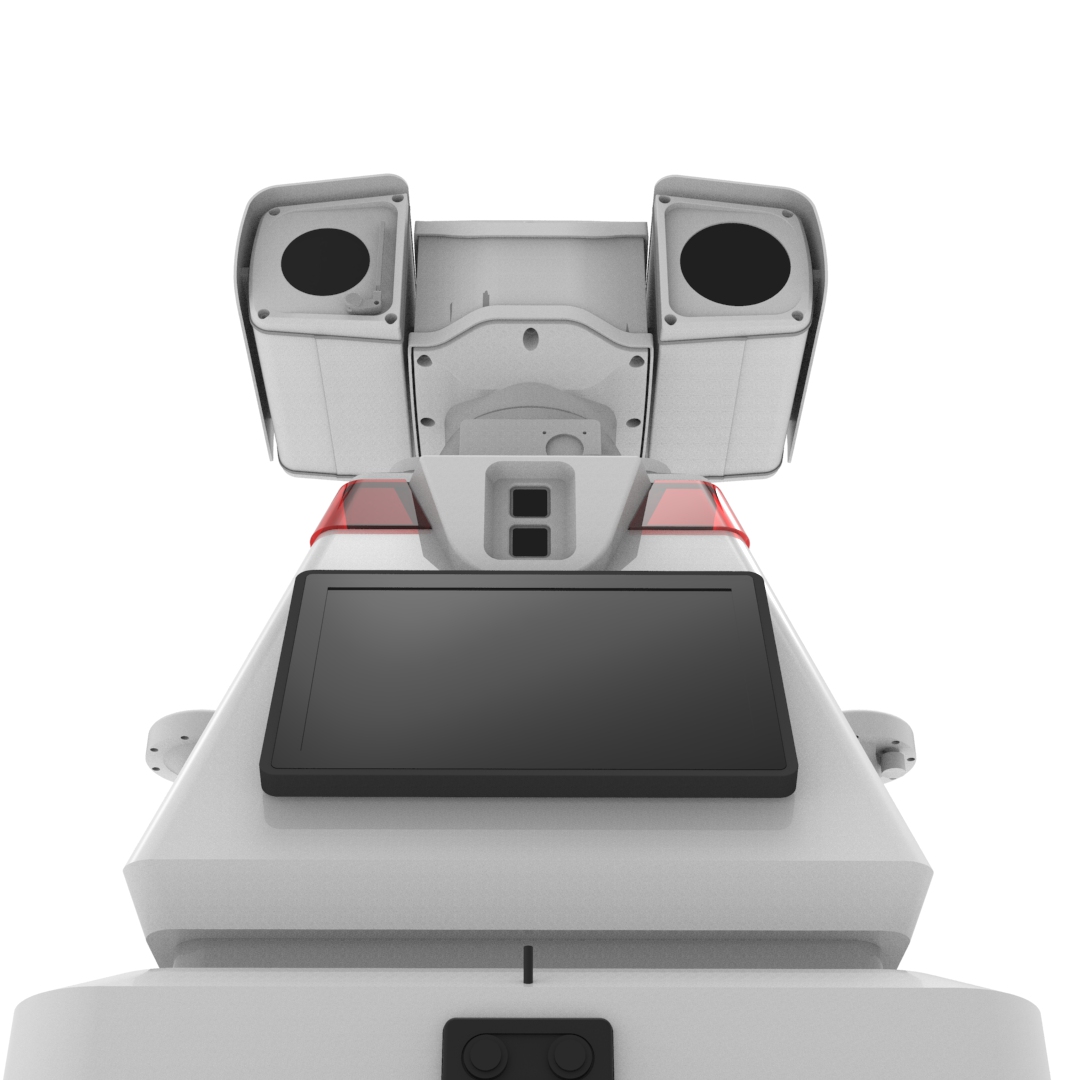

Large and small dual-screen intelligent interaction: The body is equipped with a 19-inch advertising display and a 10.1-inch voice interaction screen, which is fully equipped to meet the needs of inquiry and advertising in various scenarios.



Advertising on LED screenAI voice interactionAutomotive hardware platformSupport secondary development





Product Features:



Autonomous driving



Autonomous mappingFused positioningNavigation planningFused sensing
Autonomous obstacle avoidanceOne-click arrival Automatic chargingFault self-testing



Basic functions



Panoramic monitoringAudio broadcastTwo-way intercomTemperature and humidity monitoring
Intelligent Q&A   Infrared temperature measurementOne-key alarmSmoke monitoring



Intelligent applications



Patrol and take picturesFace detectionLicense plate detectionIntelligent detection

Abnormal alarm Patrol reportRecord traceback





Application scenarios:

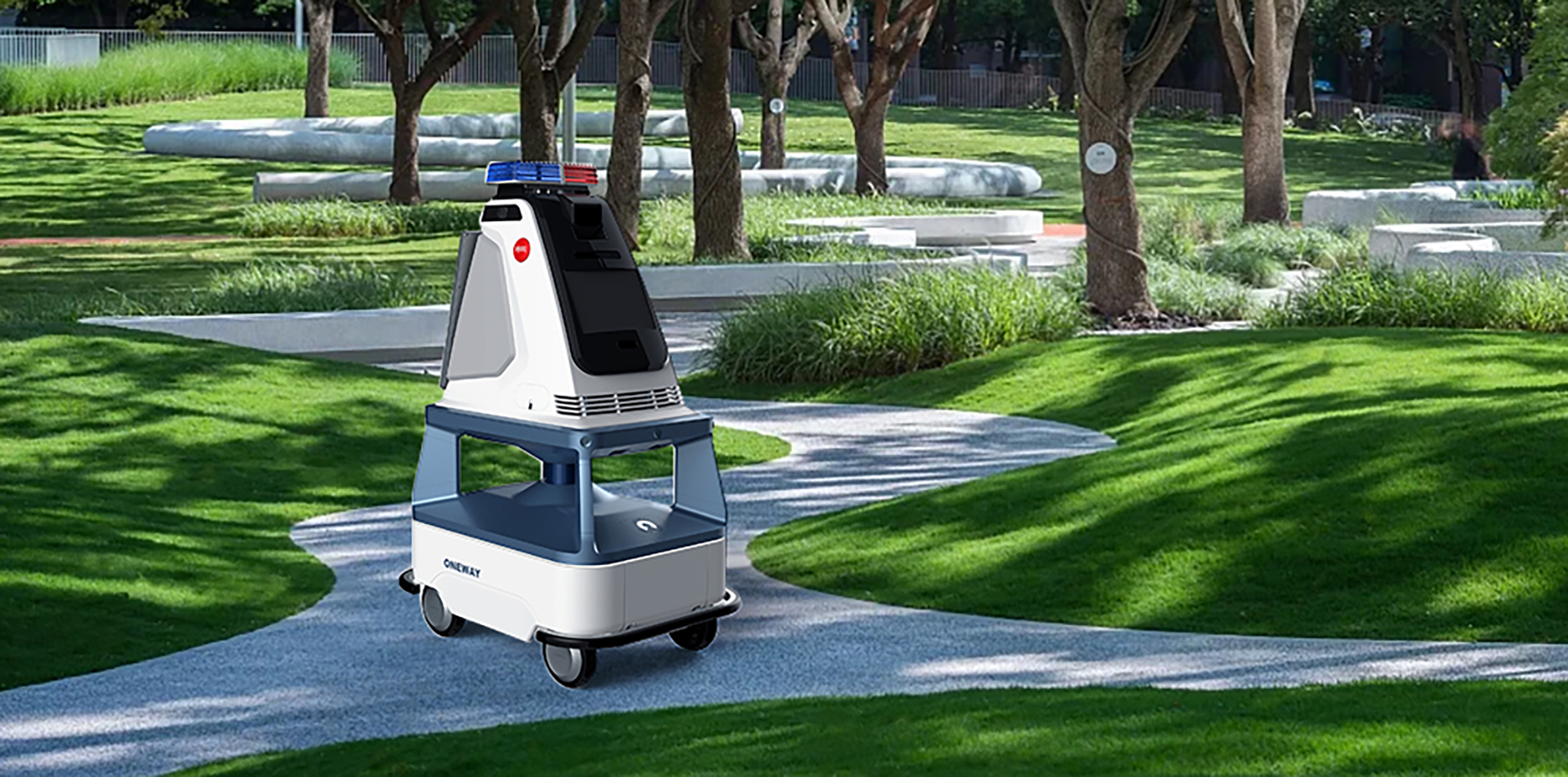

Parks

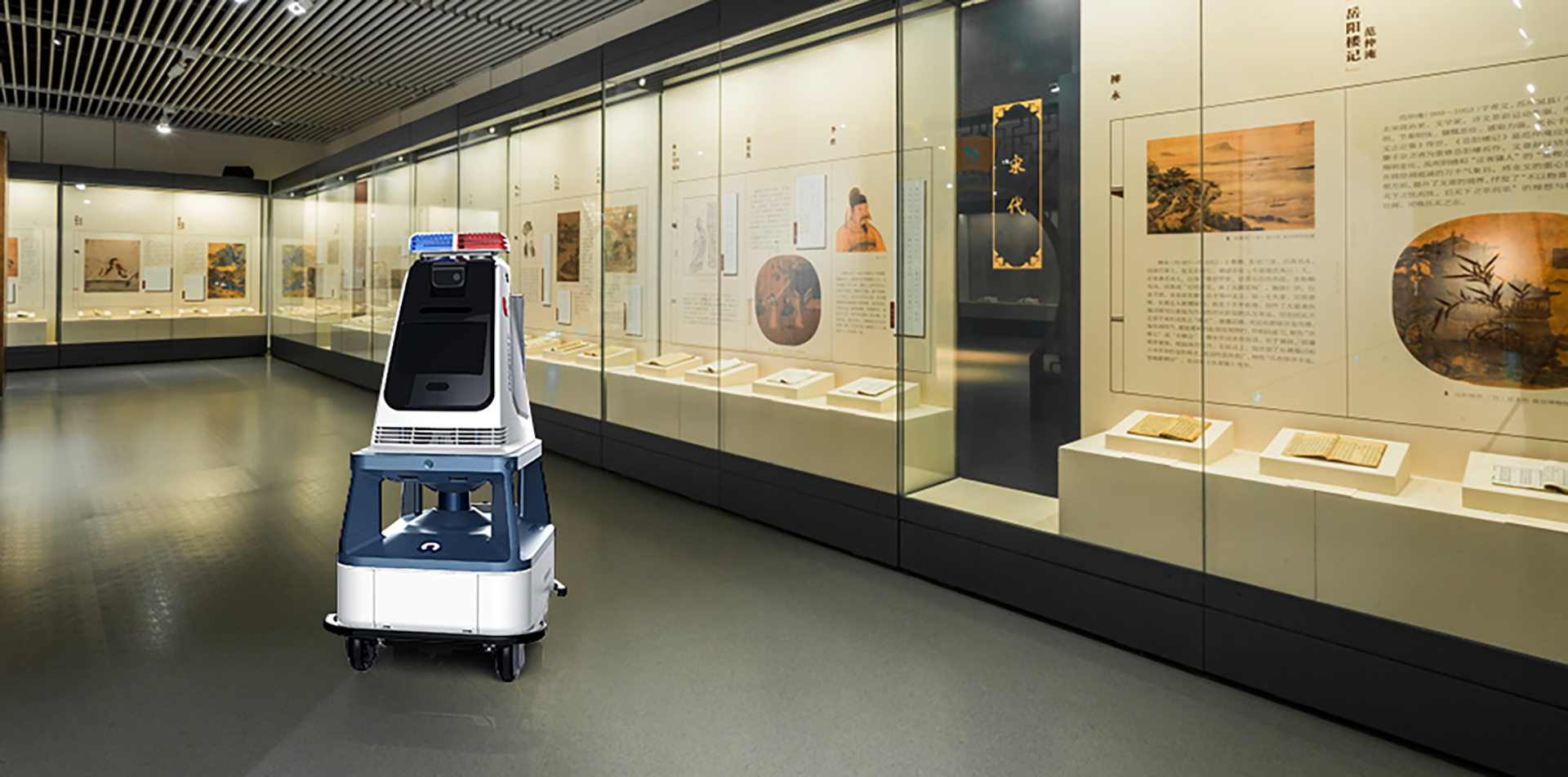

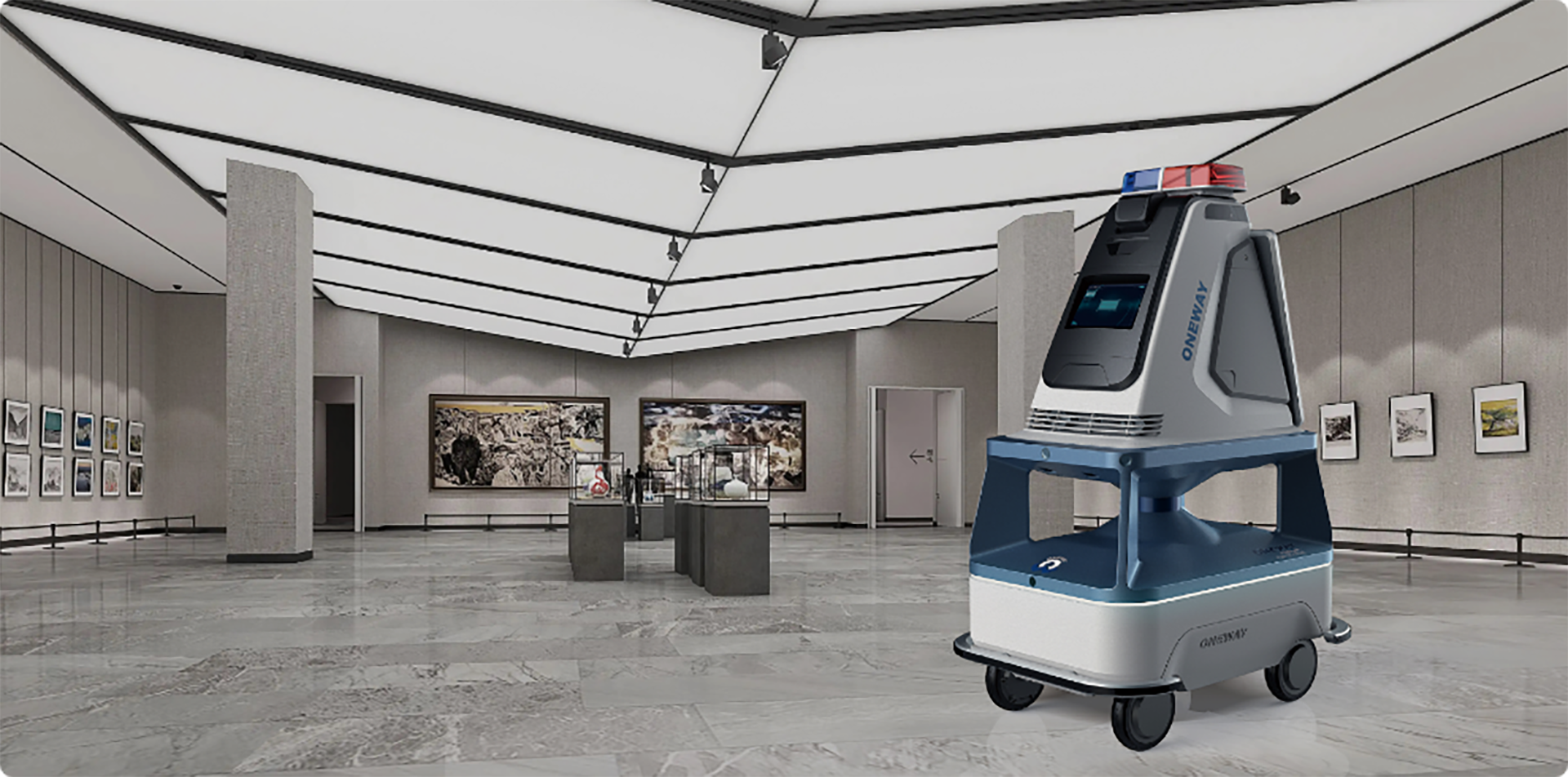

Museums

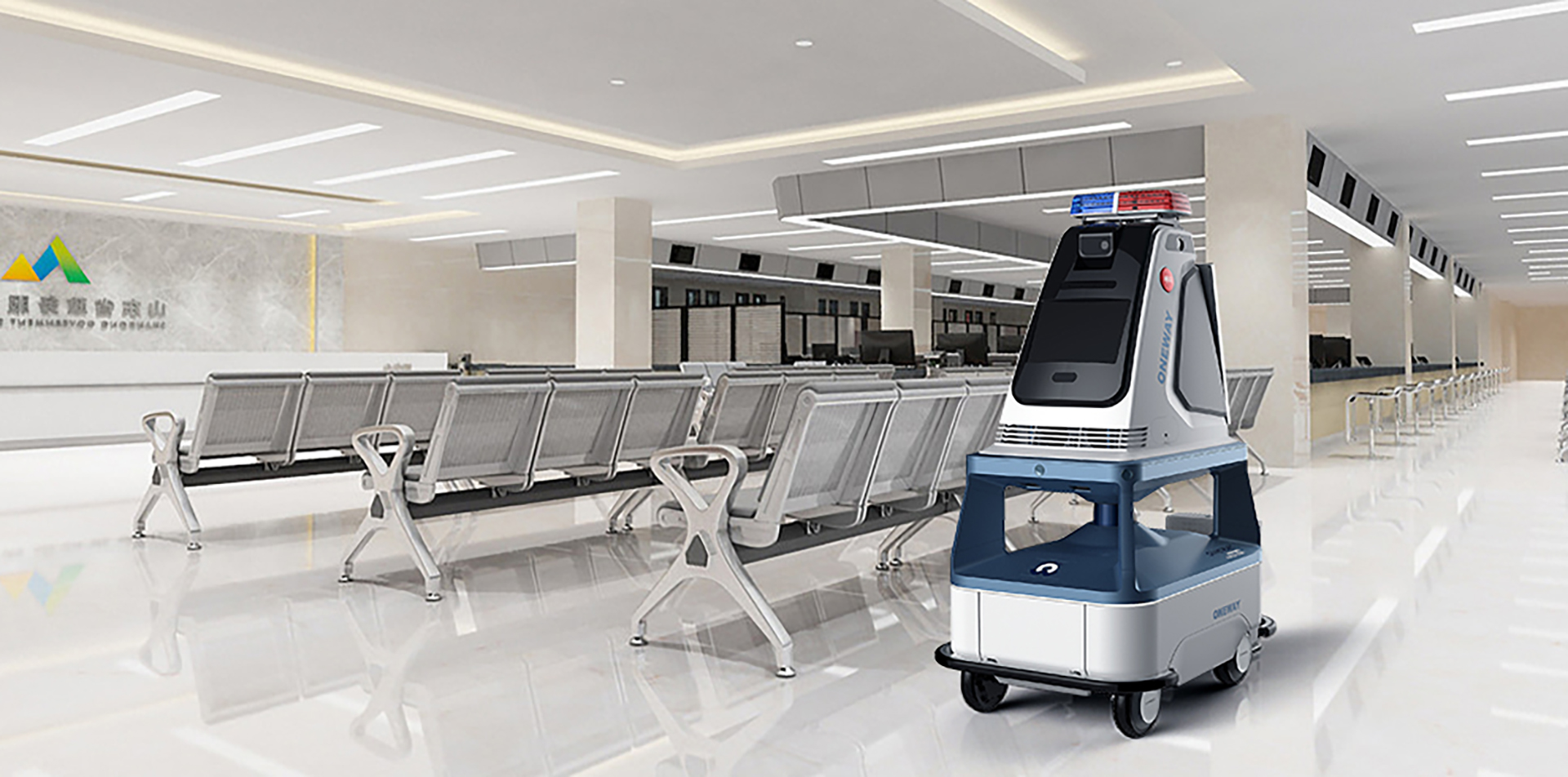

Government office halls



Product parameters:





Basic parameters

Size

831 x 626 x 1230mm

Weight

100kg

Protection level

IP55 (standard )

Operating temperature

-20°~60°

Adapt to walking surface

Indoor and outdoor flat roads

Control method

Autonomous walking|Remote control|RMS background|Mobile APP



Performance parameters

Maximum climbing angle

15°

Maximum obstacle clearance height

40mm

Battery life

8 hours

Shock absorption method

Independent suspension

Sport mode

Four-wheel drive

Fast charging

3 hours

Turning radius

Turn in place|Turn radius is 0

Motor

250Wx 4   1024-line photoelectric encoder



Autonomous navigation

Maximum autonomous navigation speed

1.6m/s

Maximum remote control speed

2m/s

Navigation and positioning

3D LiDAR & SLAM algorithm
