ANBOT-Y Security Patrol Robot

ANBOT-Y Security Patrol Robot

Mainly applied to indoor and outdoor scenarios such as residential communities, office buildings, villas, and technology parks. Robots can collaborate with property security guards and management personnel to carry out 24-hour indoor and outdoor patrol duties, which can effectively improve the security capabilities and technological image of the park, and help the park become smarter and digitally upgraded, thereby reducing operating costs and improving management efficiency.

Product Details

Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.



Support cross-floor and multi-area patrols: Through the self-developed gate&elevator IoT module, the robot can be linked with elevators and gate to achieve multi-area walking and cover a larger patrol area.



High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.



Multi-scenario function adaptation: Different business functions and customized permissions can be configured for different types of application scenarios and user roles.



Adapt to real estate scenariosSelf-developed full-stack technologyAutomotive hardware platformSupport secondary development

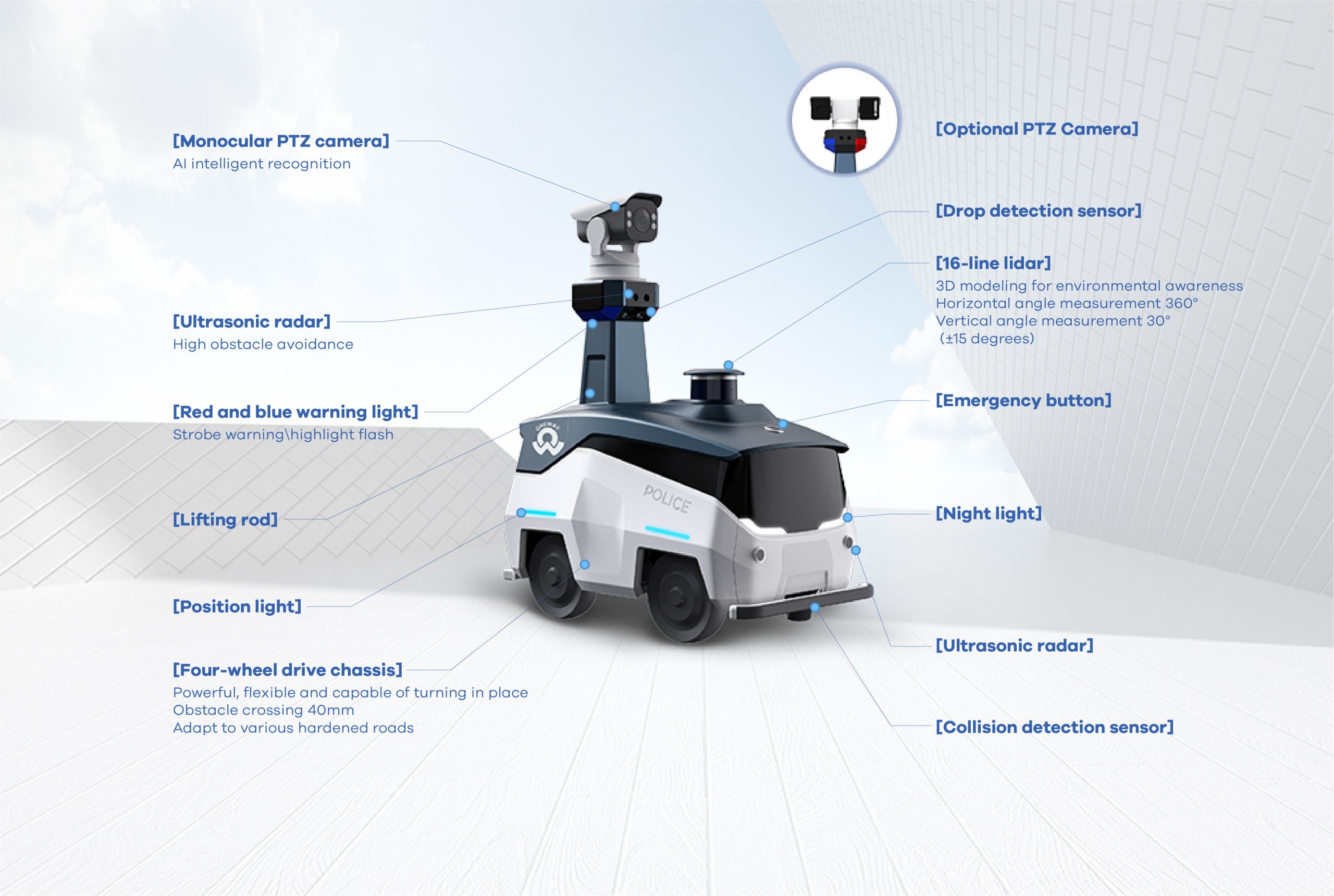

Product Features:



Autonomous driving



Autonomous mappingFused positioningNavigation planningFused sensing
Autonomous obstacle avoidanceOne-click arrival Self chargingFault self-testing



Basic functions



Panoramic monitoringAudio broadcastTwo-way intercomTemperature & humidity monitoring

Manual remote control



Intelligent applications



Patrol and take picturesFace detectionLicense plate detectionIntelligent detection

Abnormal alarm Patrol reportRecord traceback

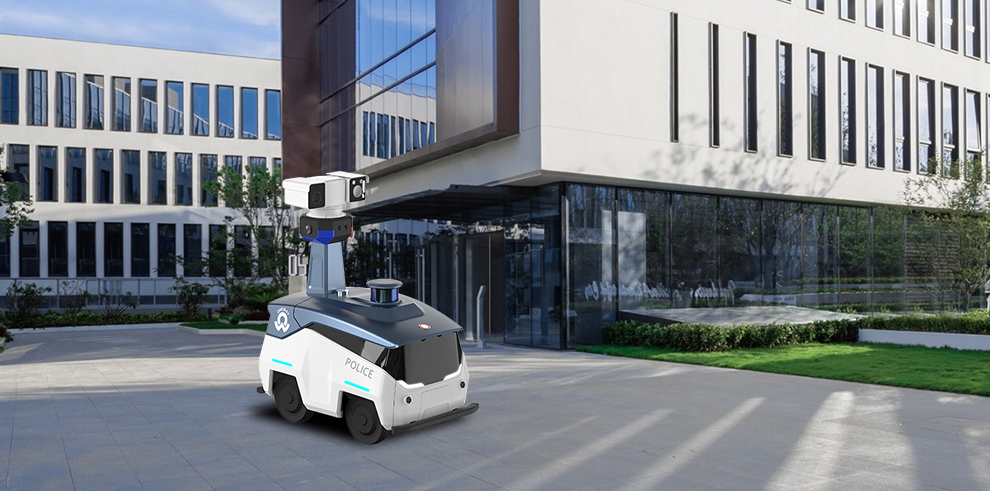

Application scenarios:





Housing estate





Commercial office buildings





Product parameters:









Basic  parameters

Size

800x523x988mm

PTZ lifting height

300mm

Weight

70kg

Protection level

IP55 (standard)

Operating temperature

-19°- 55°

Adapt to walking surface

Indoor and outdoor flat roads

Control method

Autonomous walking|Remote control|RMS background|Mobile APP

Temperature monitoring

Measuring range: -20°- 80° | Accuracy: ±0.2℃

Humidity monitoring

Range: 0-100%RH | Accuracy: 2%RH

Image Identification

Face detection|License plate detection|Pedestrian detection



Performance parameters

Maximum climbing angle

15°

Maximum obstacle clearance height

40mm

Battery life

4 hours (optional 8 hours)

Shock absorption method

Four-wheel independent suspension

Sport mode

Two-wheel front drive

Fast charging

≤2 hours (20%~90%)

Turning radius

Turn in place|Turn radius is 0

Motor

250Wx2   1024 line photoelectric encoder



Autonomous navigation

Maximum autonomous navigation speed

1.6m/s

Maximum remote control speed

2m/s

Navigation and positioning

LiDAR, SLAM
