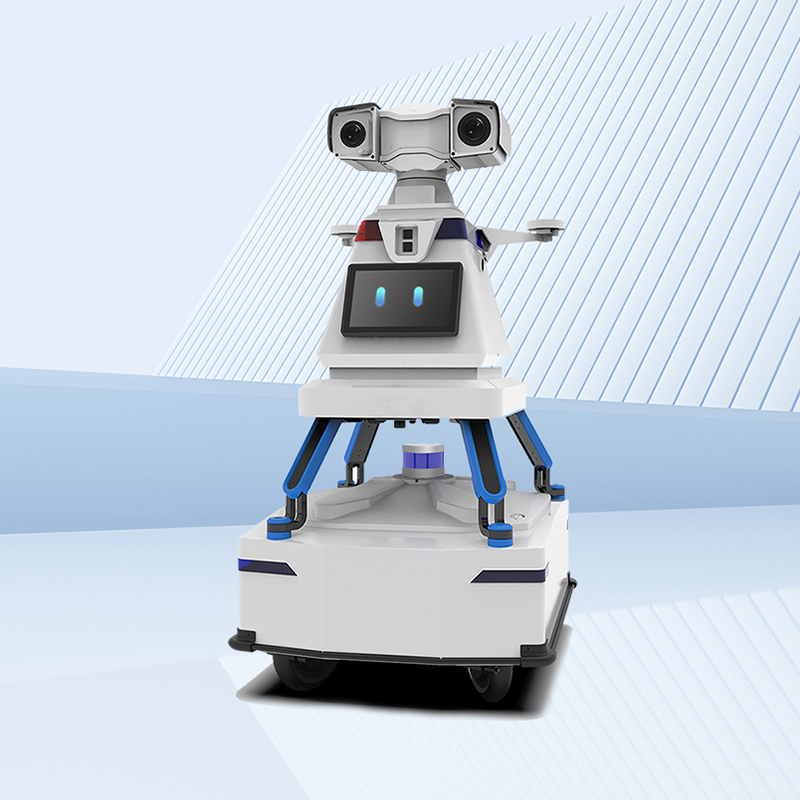

APV-SE inspection robot

APV-SE inspection robot

Mainly applied to outdoor working scenarios such as ports, chemical plants, and power transmission station. It is suitable for places with complex dynamic environments of people and vehicles and high operational risks. It can assist staff to complete tasks such as outdoor security patrols, facility and equipment status inspections, improve security levels, enhance operational efficiency, save labor costs, and reduce personnel operational safety risks.

Product Details

Product advantages:



Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.



Outdoor enhanced integrated positioning: Based on multiple hardware integrated positioning technologies such as dual GPS, Beidou, 4G/5G, and LiDAR, it can complete inspection tasks in larger outdoor areas.



High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.

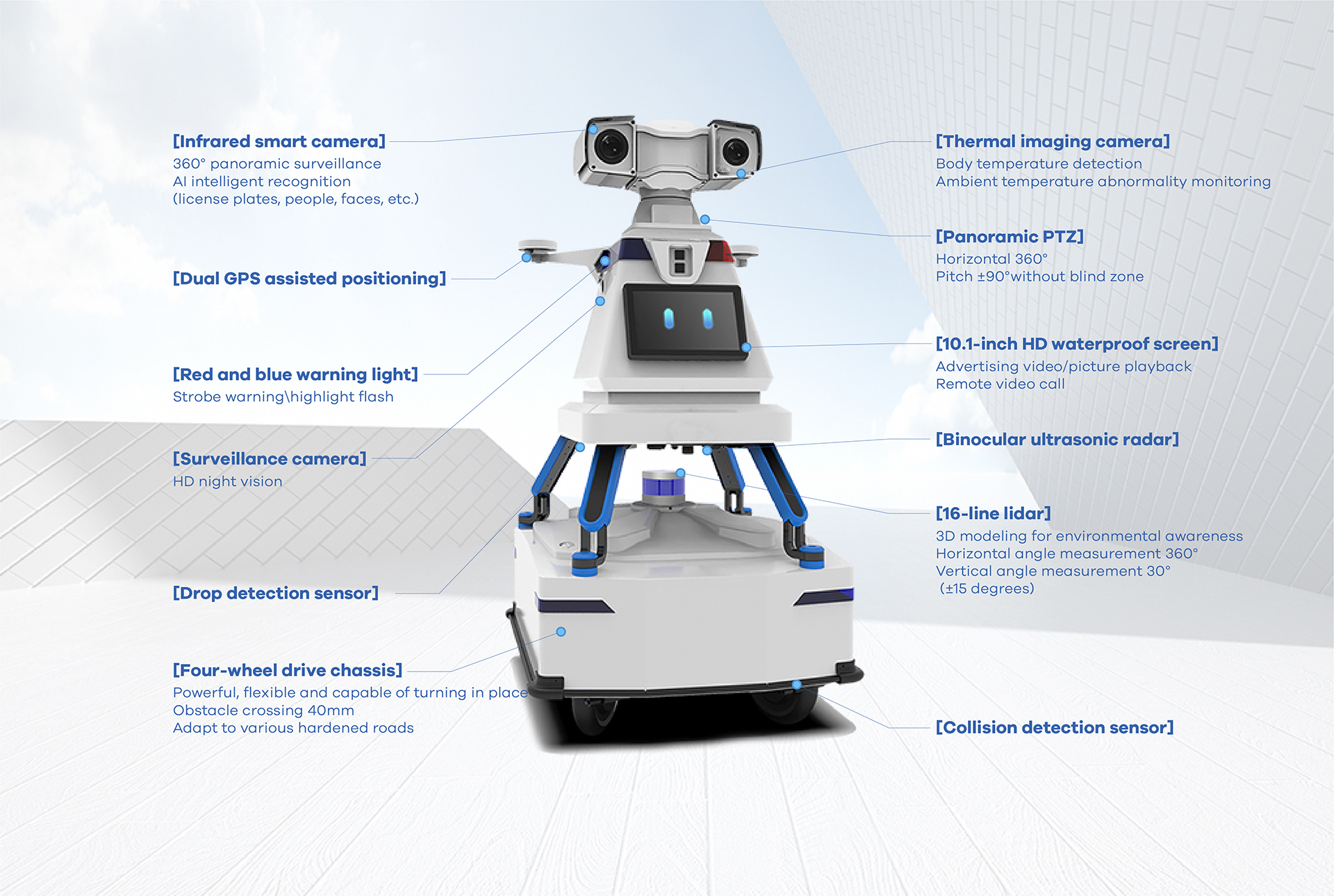

Panoramic monitoring without blind spots: The body is equipped with a high-resolution binocular PTZ camera and equipped with a thermal imaging camera. Panoramic monitoring has no blind spots and maximizes safety risk perception capabilities.



Leading inspection algorithmAutomotive hardware platform1,000,000㎡mappingSupport secondary development and customization





Product Features:





Autonomous driving



Autonomous mappingFused positioningNavigation planningFused sensing
Autonomous obstacle avoidanceOne-click arrival Automatic chargingFault self-testing





Basic functions



Panoramic monitoringAudio broadcastTwo-way intercomTemperature and humidity monitoring
Intelligent Q&A   Infrared temperature measurementOne-key alarmSmoke monitoring

Binocular PTZ cameraGas monitoring





Intelligent applications



Patrol and take picturesFace detectionLicense plate detectionIntelligent detection
Abnormal alarm Patrol reportRecord traceback AI detection

Intelligent meter reading detectionMovement detectionFire alarm





Application scenarios:

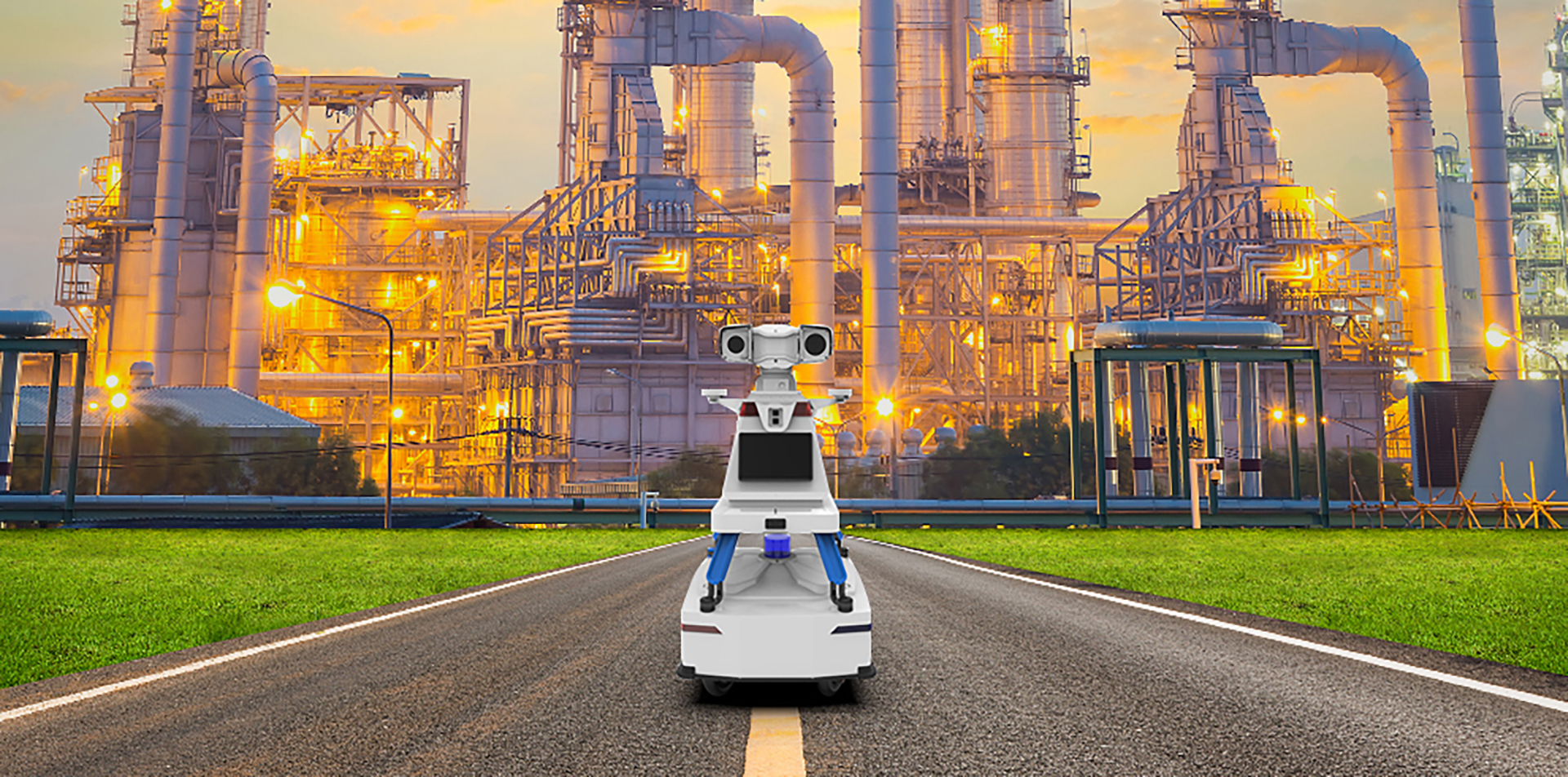

Chemical plant

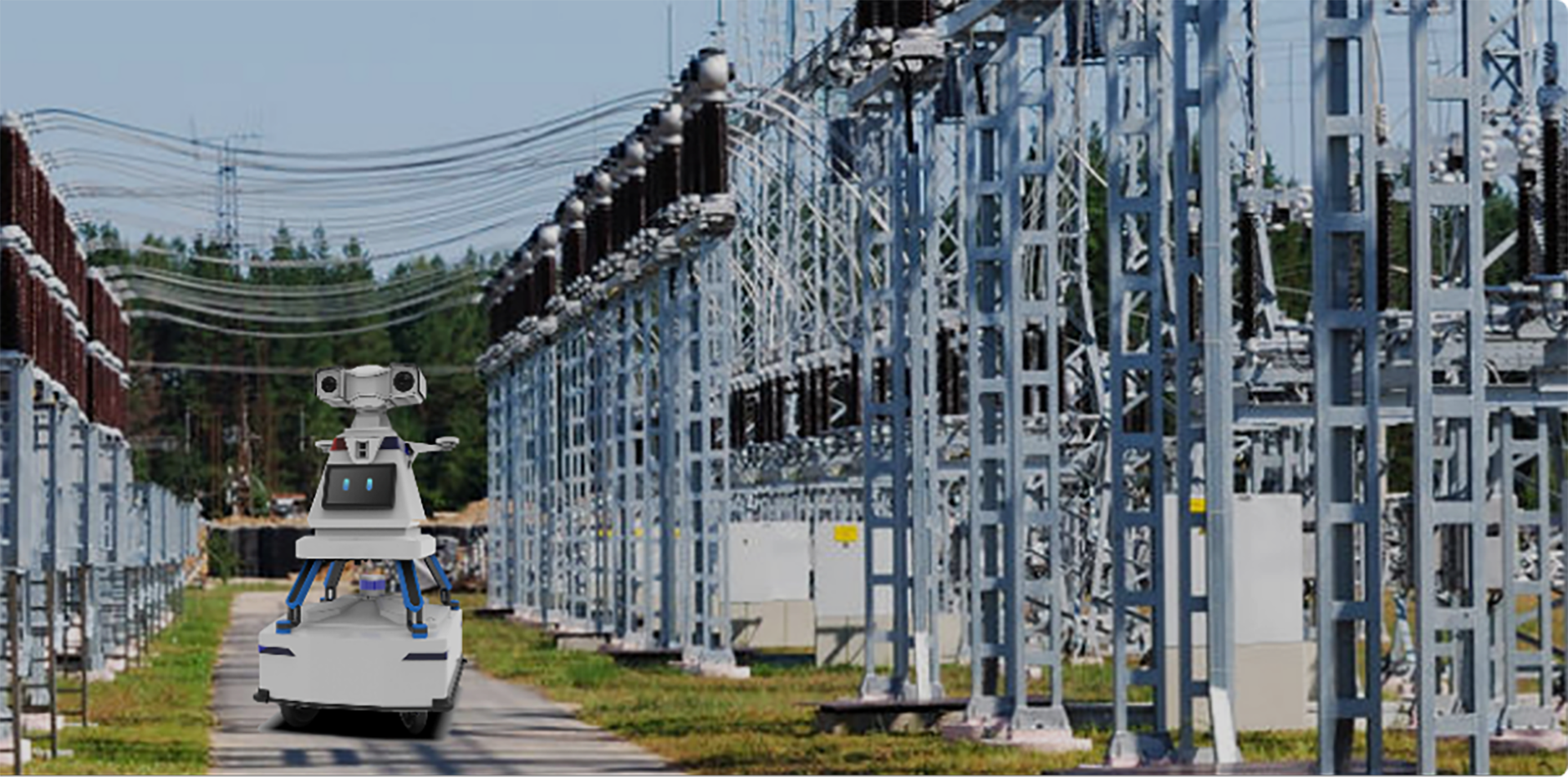

Power transmission station

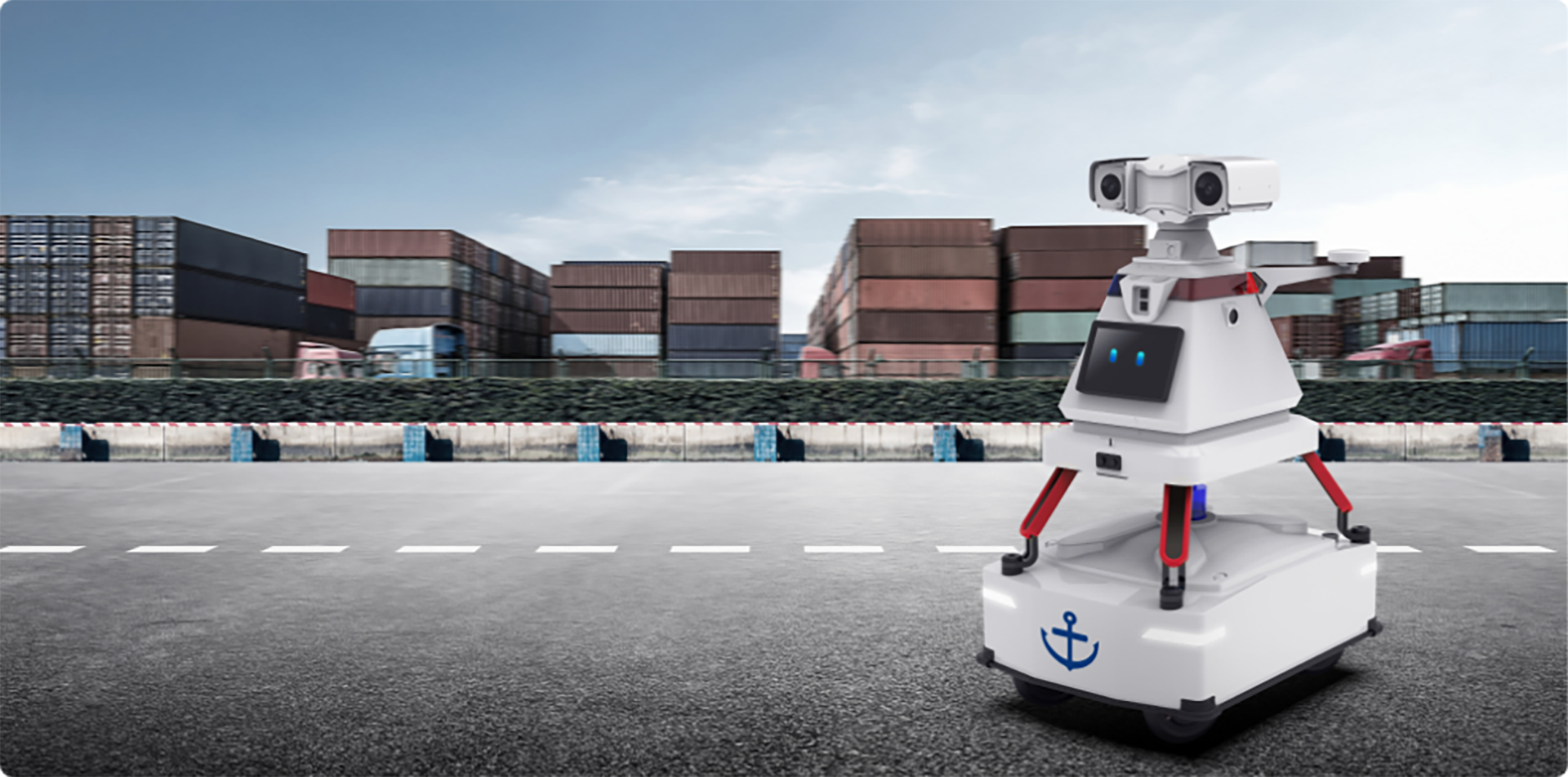

Port



Product parameters:







Basic parameters

Size

875 x 675 x 1270mm

Weight

109kg

Protection level

IP55 (standard)

Operating temperature

-20°- 50°

Adapt to walking surface

Outdoor hardened pavement

Control method

Autonomous walking|Remote control|RMS background|Mobile APP



Performance parameters

Maximum climbing angle

15°

Maximum obstacle clearance height

60mm

Battery life

8 hours

Shock absorption method

Four-wheel independent suspension

Sport mode

Four wheel drive

Fast charging

3 hours

Turning radius

Turn in place|Turn radius is 0

Motor

250Wx 4   1024-line photoelectric encoding



Autonomous navigation

Maximum autonomous navigation speed

1.6m/s

Maximum remote control speed

2m/s

Navigation and positioning

3D LiDAR & SLAM algorithm
