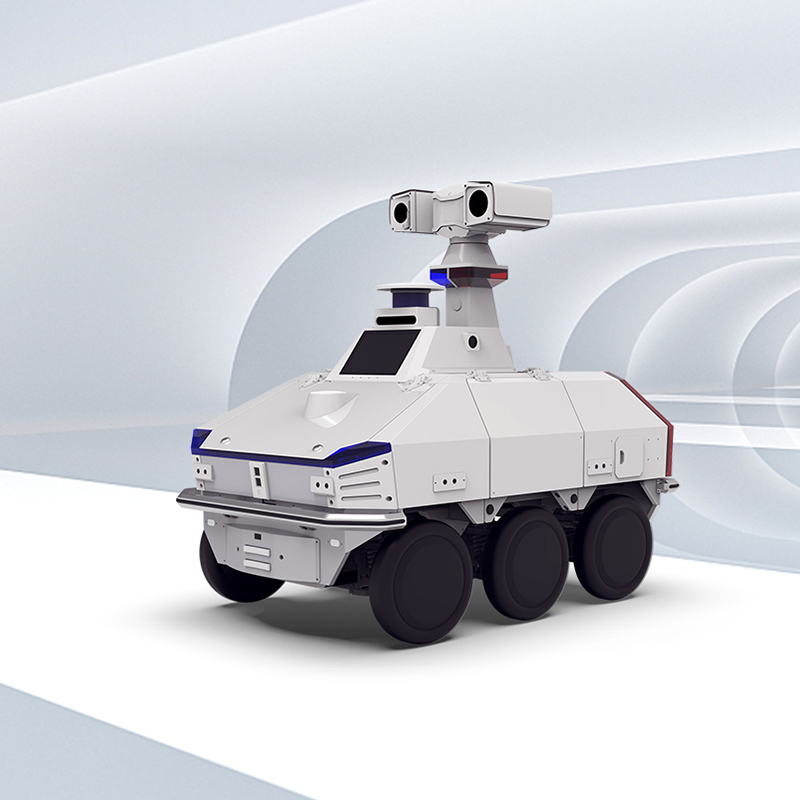

APV-X special inspection robot

APV-X special inspection robot

Mainly applied to special working scenarios such as military camps, border posts, airports, and military material warehouses. The six wheel robot chassis has strong passability, large load capacity and reliable performance. It can assist military officers and soldiers to complete tasks such as fixed-point duty, night patrol, material and equipment inspection, and remote visual reconnaissance in complex military combat environments, releasing troops and reducing potential risks. The robot is equipped with AI detection and interaction functions, which can cooperate with the military to complete military appearance and discipline inspections, political propaganda, and other work.

Product Details

Product advantages:

Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.



All-terrain robot chassis: Equipped with a powerful six-wheel and six-wheel drive chassis and separate frame construction, it can easily pass 140cm obstacles vertically, adapting to all-terrain use.



High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.

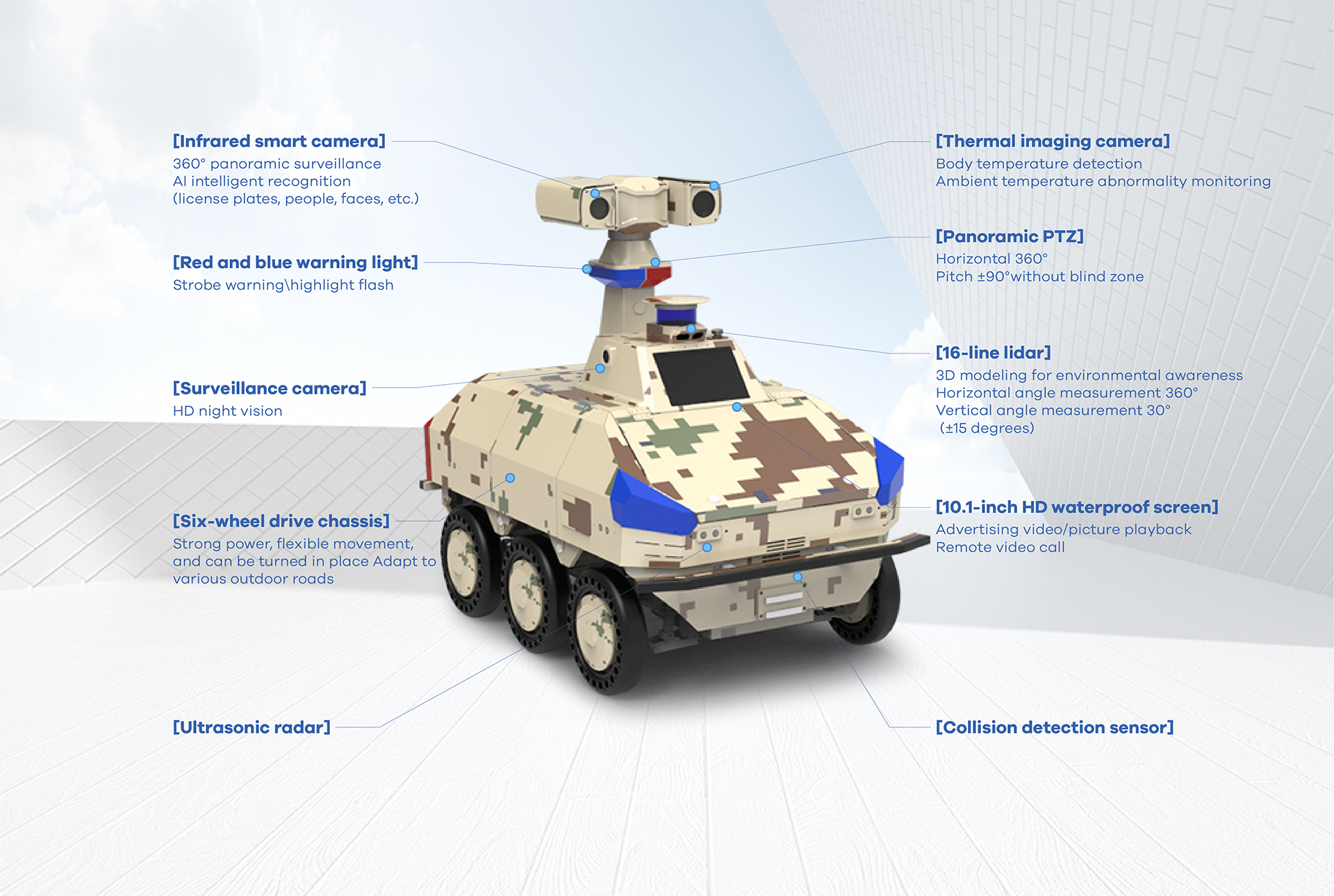

Panoramic monitoring without blind spots: The body is equipped with a high-resolution binocular PTZ camera and equipped with a thermal imaging camera. Panoramic monitoring has no blind spots and maximizes safety risk perception capabilities.



Rock-solid military qualityFull stack self-developed technologyAutomotive hardware platform1,000,000㎡mappingSupport secondary development and customization





Product Features:





Autonomous driving



Autonomous mappingFused positioningNavigation planningFused sensing
Autonomous obstacle avoidanceOne-click arrival Automatic chargingFault self-testing







Basic functions



Panoramic monitoringAudio broadcastTwo-way intercomTemperature and humidity monitoring
Intelligent Q&A   Infrared temperature measurementOne-key alarmSmoke monitoring

Binocular PTZ cameraGas monitoring







Intelligent applications



Patrol and take picturesFace detectionLicense plate detectionIntelligent detection
Abnormal alarm Patrol reportRecord traceback AI detection

Intelligent meter reading detectionMovement detectionFire alarm



Application scenarios:

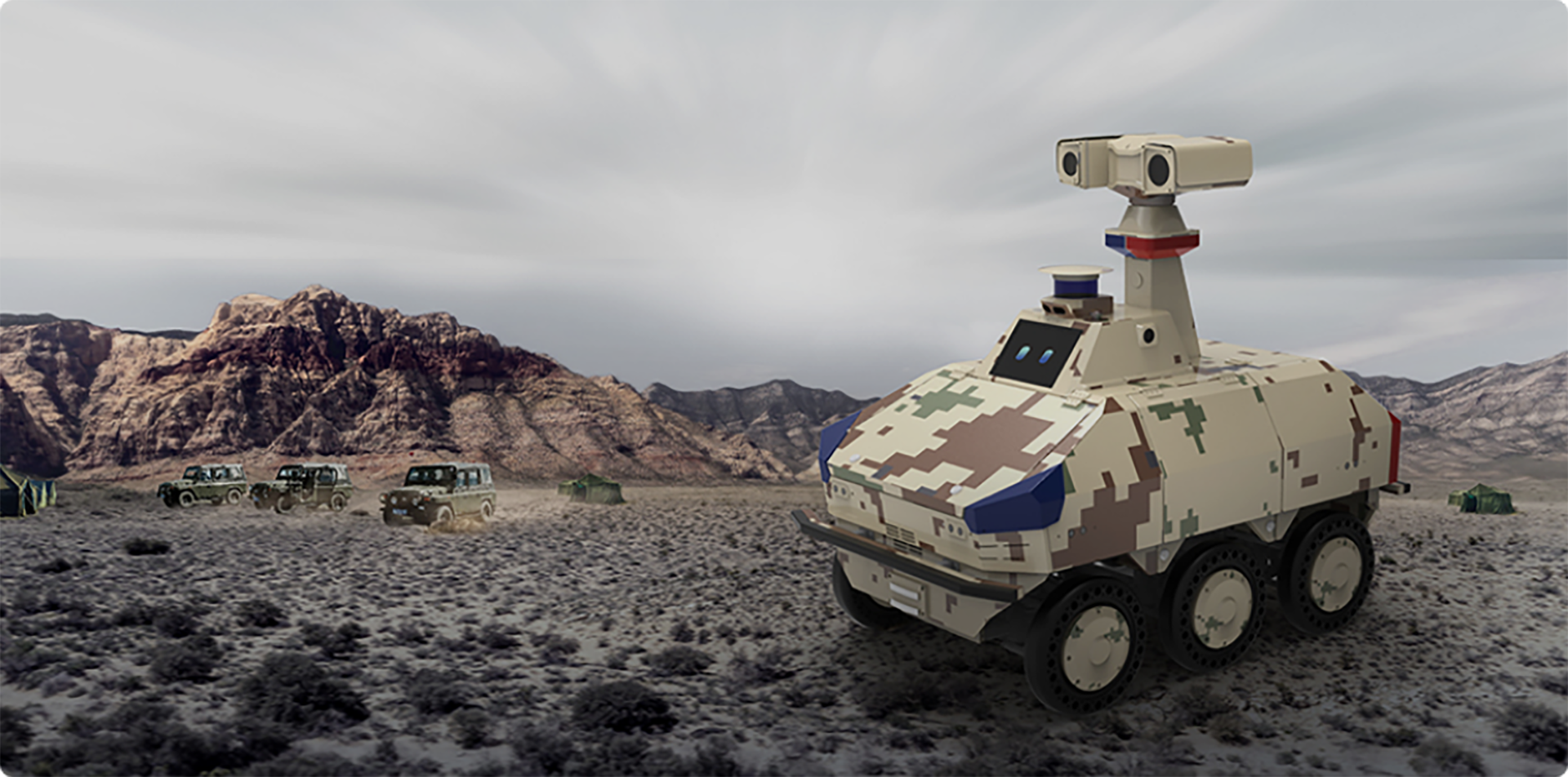

Border post





Military camp area

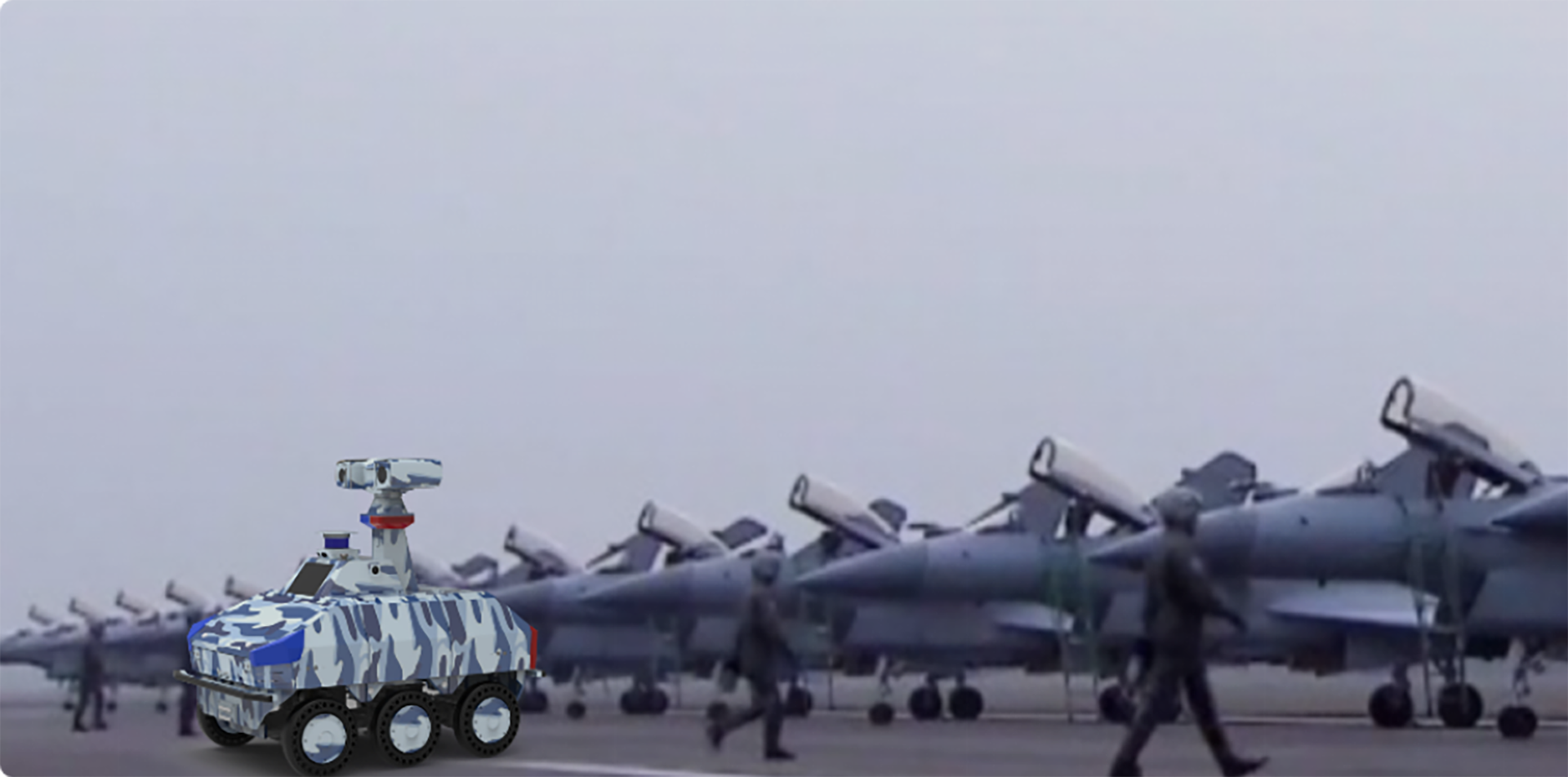

Airport





Product parameters:





Basic parameters

Size

1400x870x1250mm

Weight

250kg

Protection level

IP55 (standard)

Operating temperature

-19°- 55°

Adapt to walking surface

Indoor and outdoor roads|All terrain

Control method

Autonomous walking|Remote control|RMS background|Mobile APP



Performance parameters

Maximum climbing angle

20°

Maximum obstacle clearance height

140mm

Battery life

8 hours

Shock absorption method

Six-wheel independent suspension

Sport mode

Six-wheel drive

Fast charging

4 hours

Turning radius

Turn in place|Turn radius is 0

Motor

600Wx6   1024 line photoelectric encoder



Autonomous navigation

Maximum autonomous navigation speed

1.6m/s

Maximum remote control speed

2m/s

Navigation and positioning

3D LiDAR & SLAM algorithm
