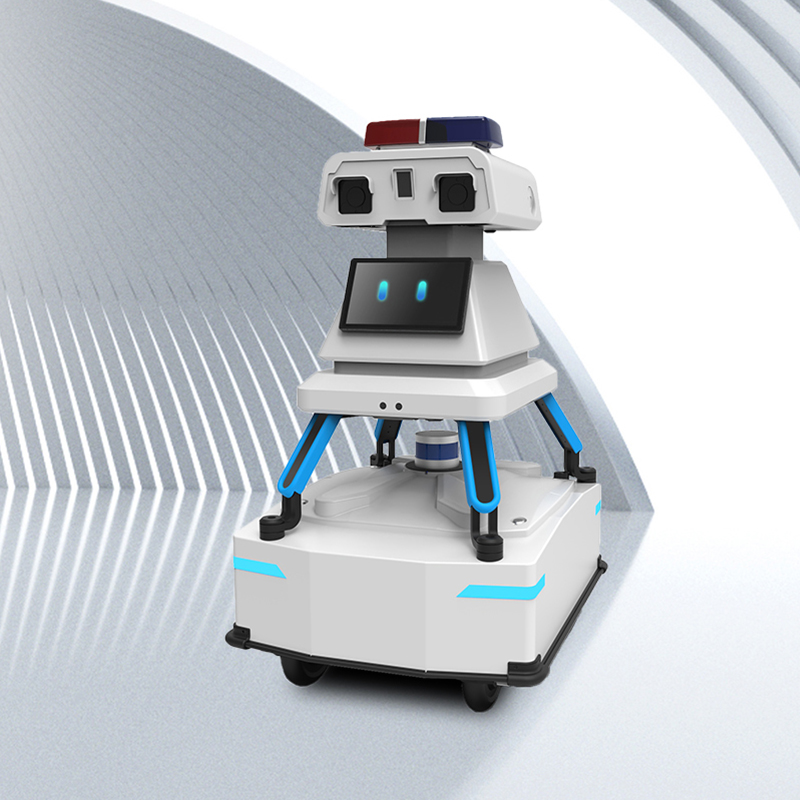

APV-S security patrol robot

APV-S security patrol robot

Mainly applied to police stations, judicial institutions, and major exhibition and conference scenes. It has a metal body and can assist police officers in completing basic, repetitive, and dangerous police work, promote the intelligent upgrade of public security, and ensure the safety of police officers, releasing police power and reducing personnel costs.

Product Details

Product advantages:



Super navigation and obstacle avoidance capabilities: Based on ONEWAY team’s 10-year self-developed robot Low-speed automated driving (LSAD) systems, chassis motion control technology and modular chassis design with stable and reliable performance.



Support cross-floor and multi-area patrols: Through the self-developed gate&elevator IoT module, the robot can be linked with elevators and gate to achieve multi-area walking and cover a larger patrol area.



High-accuracy intelligent algorithm: Based on ONEWAY CLOUD's image deep learning and artificial intelligence technology capabilities, it has extremely high accuracy in identifying abnormal situations such as faces and intrusions.



Thermal imaging assisted monitoring: The body is equipped with a high-resolution thermal imaging camera, which integrates temperature monitoring with the high-definition camera to maximize safety risk perception capabilities.



Police system dockingAutomotive hardware platform1,000,000㎡mappingSupport secondary development

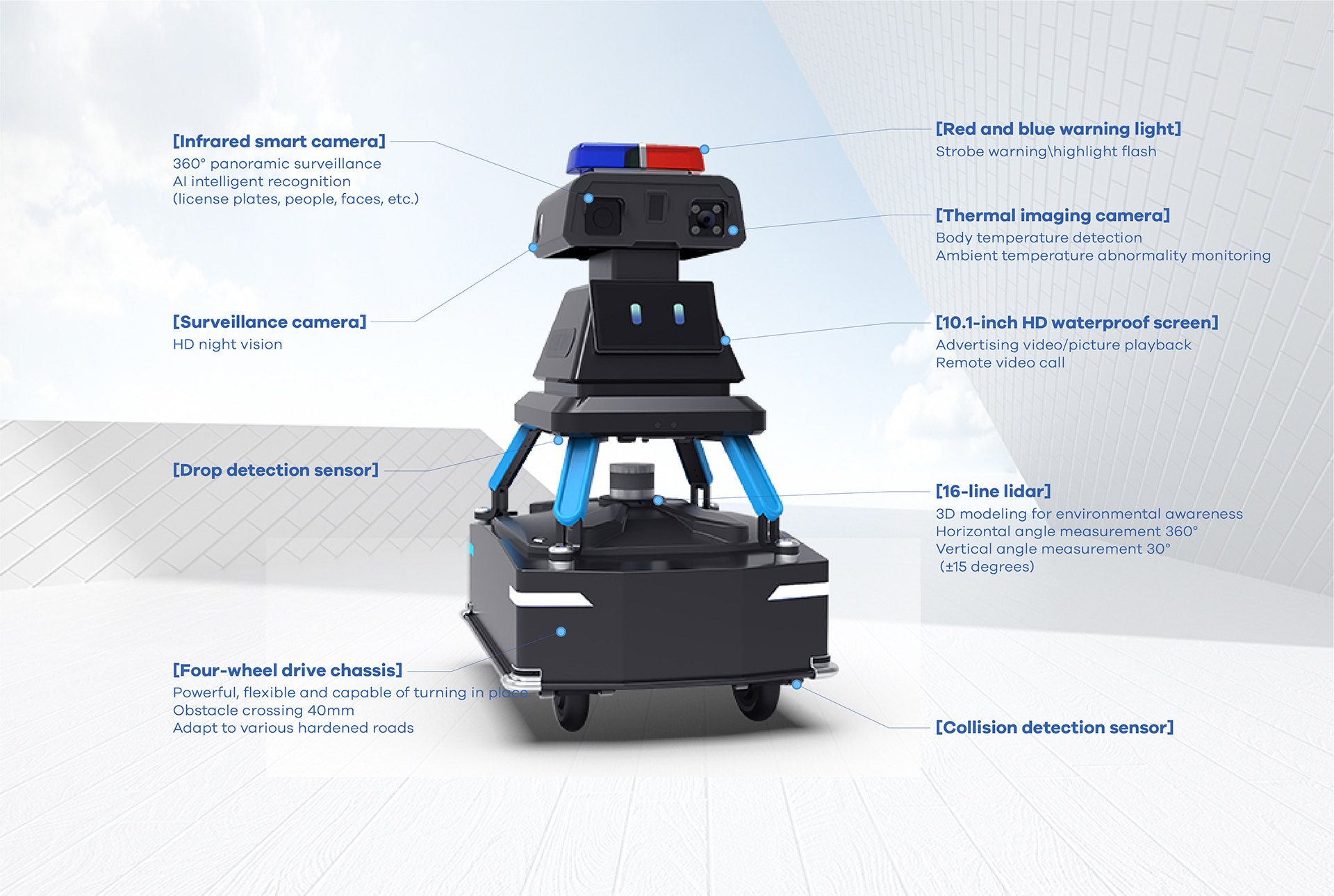

Product Features:

Autonomous driving



Autonomous mappingFused positioningNavigation planningFused sensing
Autonomous obstacle avoidanceOne-click arrival Automatic chargingFault self-testing



Basic functions



Panoramic monitoringAudio broadcastTwo-way intercomTemperature and humidity monitoring
Intelligent Q&A   Infrared temperature measurementOne-key alarmSmoke monitoring



Intelligent applications



Patrol and take picturesFace detectionLicense plate detectionIntelligent detection

Abnormal alarm Patrol reportRecord traceback





Application scenarios:

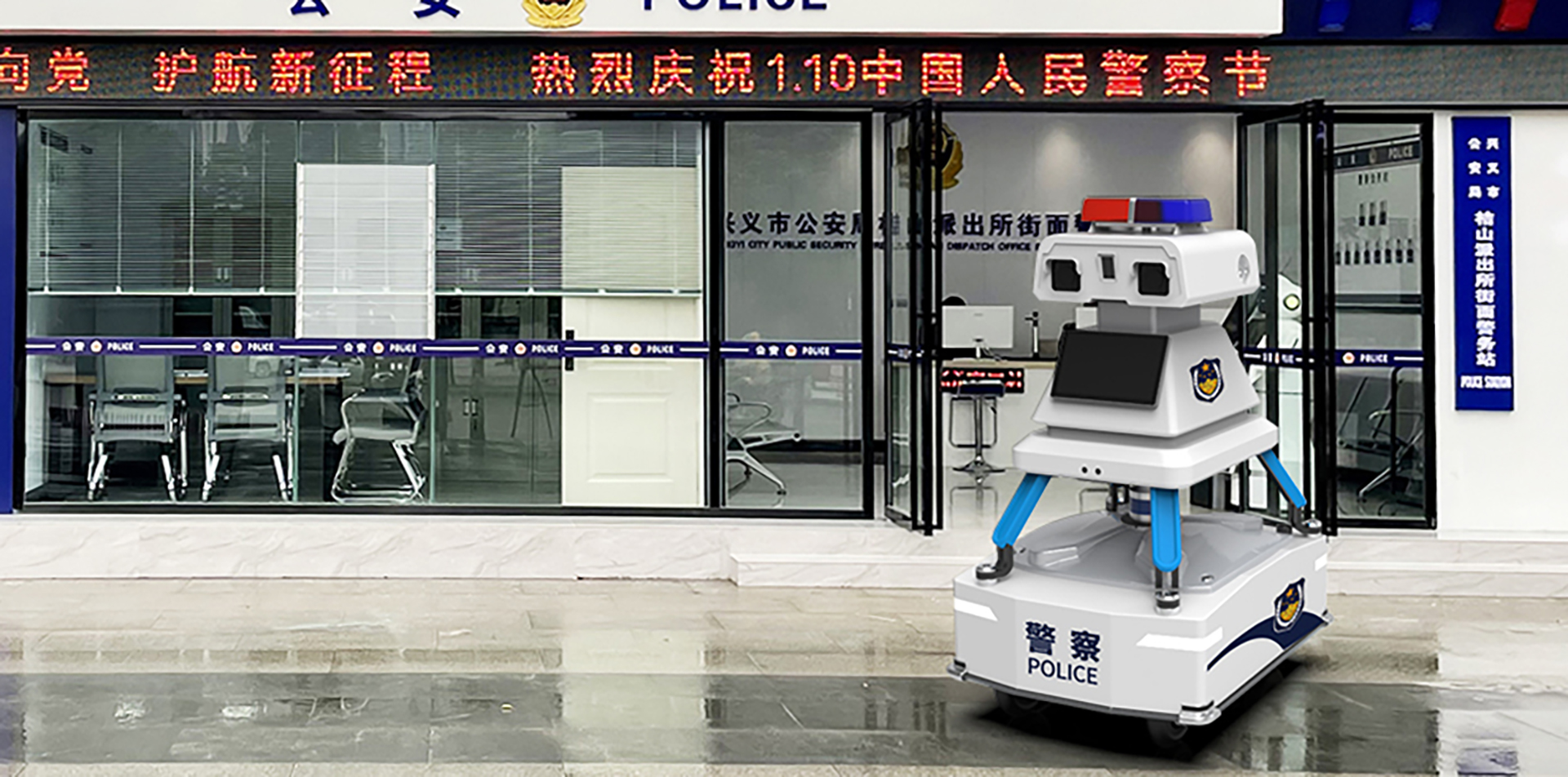

Police stations





Major exhibitions and conferences

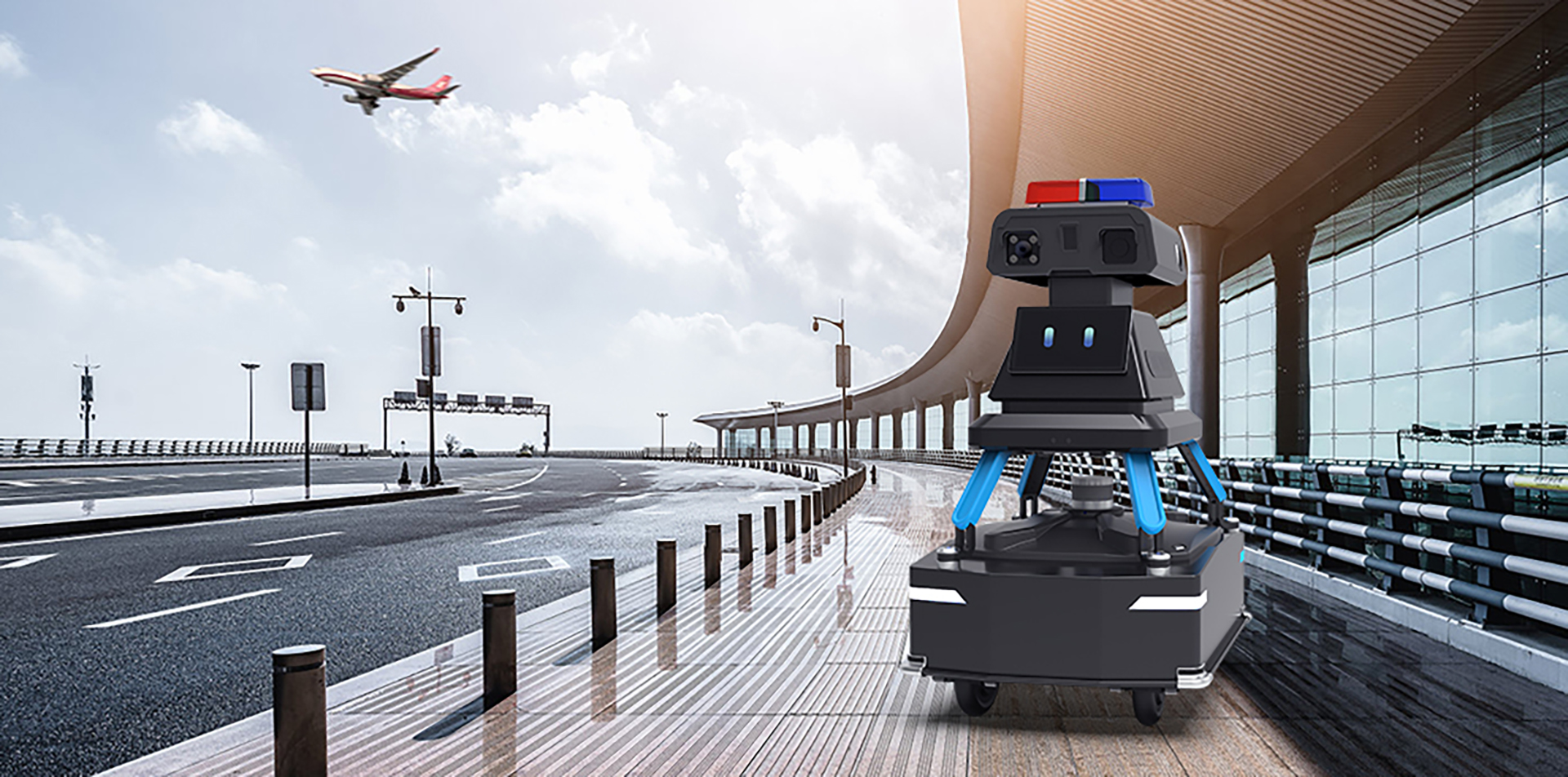

Airports



Product parameters:





Basic parameters

Size

875 x 675 x 1270mm

Weight

105kg

Protection level

IP55 (standard)

Operating temperature

-20°- 55°

Adapt to walking surface

Outdoor hardened pavement

Control method

Autonomous walking|Remote control|RMS background|Mobile APP



Performance parameters

Maximum climbing angle

15°

Maximum obstacle clearance height

60mm

Battery life

8 hours 48V30Ah

Shock absorption method

Four-wheel independent suspension

Sport mode

Four wheel drive

Fast charging

3 hours

Turning radius

Turn in place|Turn radius is 0

Motor

250Wx 4   1024-line photoelectric encoding



Autonomous navigation

Maximum autonomous navigation speed

1.6m/s

Maximum remote control speed

2m/s

Navigation and positioning

3D LiDAR & SLAM algorithm
